CleanAcids
Sub-boiling Purification Systems
Safely produce ultra-pure reagents for trace metal analysis from inexpensive reagent grade materials. Provides easy operation and simple setup for purifying multiple reagents.
Cleaner Acids. Lower Cost. Better Results.
- Produce high-purity acid when it is needed - from lower cost reagent grade acid
- The inexpensive reagent-grade acid is gently heated and the condensed vapors produce high-purity acid in an external collection bottle
- Units available with 1 and 3 purification stations with volumes of 125, 500, & 1000 mL
- All CleanAcid component surfaces are PFA coated to eliminate corrosion by acid vapors, for long. maintenance-free lifetime
- Temperature Regulator located remote from device with a PFA encapsulated cable to allow placement outside hood environment
Features Diagram
CleanAcid 1 x 1000 mL
CleanAcid 3 x 500 mL
CleanAcid 3 x 125 mL

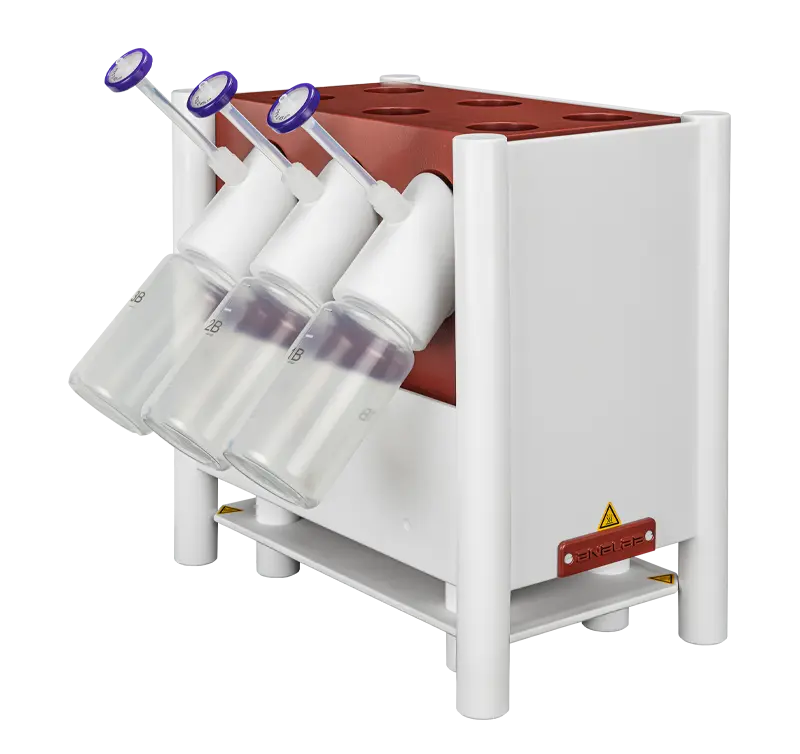

Shown: CleanAcid 3 x 125 mL
CleanAcids
Three CleanAcids models are available to serve your laboratory’s purification needs. Two of the models are configured with CleanClever wells on the top surface of the thermal block, which can be used to acid vapor clean vessels at the same time as reagents are being purified.
CleanAcids
| Models | 3 x 125 mL | 3 x 500 mL | 1 x 1000 mL |
|---|---|---|---|
| Part Number (110-120 V / Amps) | CA-3.125-1V-15A | - | CA-1.1000-1V-15A |
| Part Number (208-240 V / Amps) | CA-3.125-2V-20A | CA-3.500-2V-15A | CA-1.1000-2V-15A |
| Dimensions (L x W x H, in cm) | 36 x 24 x 35 | 42 x 24 x 41 | 34 x 22 x 50 |
| Weight (Kg) | 19 | 33 | 19 |
| Number of CleanClever wells | 6 | 6 | - |
Shown: VK-500mL-WV
CleanAcids/EvapoClean Accessories
CleanAcids & EvapoClean Vessel Kits consist of two PFA bottles (Source and Product) and a PTFE Elbow. Systems include complete vented vessel kits. Additional vessel kits can be added to easily and quickly purify additional reagents. To support use of a remote temperature probe, vessel kits equipped with dual port elbows are available. The external probe is a crucial element to reach the optimal purification of your reagents. Stands for the vessel kits are available to store them when not in use.
CleanAcids/EvapoClean Accessories
| Part Number | Description | Contents |
|---|---|---|
| VK-125mL-WV | PFA Vessel Kit, 125 mL, with Vent | 2 x 125 mL PFA bottles & closures + PTFE elbow, vent, filter |
| VK-500mL-WV | PFA Vessel Kit, 500 mL, with Vent | 2 x 500 mL PFA bottles & closures + PTFE elbow, vent, filter |
| VK-1000mL-WV | PFA Vessel Kit, 1000 mL, with Vent | 1 jar + 1 bottle with closure in PFA + PTFE elbow, vent, filter |
| EP-125mL-WV | Dual Port Elbow & Probe Kit, for 125 mL | PFA dual port elbow, vent, filter, & temperature probe for 125 mL |
| EP-500mL-WV | Dual Port Elbow & Probe Kit, for 500 mL | PTFE dual port elbow, vent, filter, & temperature probe for 500 mL |
| EP-1000-WV | Dual Port Elbow & Probe Kit, for 1000 mL | PTFE dual port elbow, vent, filter, & temperature probe for 1000 mL |
| ES-6.125 | Elbow Stand, six position for 125 mL Vessel Kits | PVC stand for 6 x 125 mL Clean Acids Vessel Kits |
| ES-3.500 | Elbow Stand, three position for 500 mL Vessel Kits | PVC stand for 3 x 500 mL Clean Acids Vessel Kits |
| S-INSITU-150E | Temp Probe for 125 mL Vessels | Remote probe (150 mm), use with Dual Controller & 125 mL CleanAcids vessels |
| S-INSITU-270E | Temp Probe for 500 mL Vessels | Remote probe (270 mm), use with Dual Controller & 500 mL CleanAcids vessels |
| S-INSITU-450E | Temp Probe for 1000 mL Vessels | Remote probe (450 mm), use with Dual Controller & 1000 mL CleanAcids vessels |
Related Products
Temperature Regulators
All modules require an external temperature regulator/ controller. Designed for remote location outside the corrosive atmosphere in the fume hood. They are available in 110V and 208-240V versions depending on the power circuits available in your laboratory with either a basic timer/single setpoint or multiple temperature program capability.
Single Controller Regulator Specifications
| Model | Timer | Programmable | Electrical Requirement | NEMA Plug |
|---|---|---|---|---|
| RNP-1V-15A-T | YES | 110V/15A | 5-15P | |
| RNP-1V-20A-T | YES | 110V/20A | 5-20P | |
| RNP-2V-15A-T | YES | 208-240V/15A | 6-15P | |
| RNP-2V-20A-T | YES | 208-240V/20A | 6-20P | |
| RP-1V-15A | YES | 110V/15A | 5-15P | |
| RP-1V-20A | YES | 110V/20A | 5-20P | |
| RP-2V-15A | YES | 208-240V/15A | 6-15P | |
| RP-2V-20A | YES | 208-240V/20A | 6-20P |
Dual Controller Regulator Specifications
| Model | Timer | Programmable | Electrical Requirement | NEMA Plug |
|---|---|---|---|---|
| RNP-DUAL-1V-15A | YES | 110V/15A | 5-15P | |
| RNP-DUAL-2V-20A | YES | 208-240V/20A | 6-20P | |
| RP-DUAL-1V-15A | YES | 110V/15A | 5-15P | |
| RP-DUAL-2V-20A | YES | 208-240V/20A | 6-20P |
