EvapoClean
Evaporate & Concentrate
The Analab EvapoClean systems are designed to safely evaporate and concentrate samples in aqueous acids and organic solvents for trace metal analysis. They provide a closed sample evaporation environment that protects important samples from external contamination.
Better Sample Preparation = Better Results
- Provides partial or complete evaporation with constant and uniform heating
- Available in 25 and 125 mL vessel sizes
- All systems feature CleanClever wells for sample digestion and vessel cleaning
Features Diagram
Evapoclean 3 x 125 mL
Evapoclean 6 x 125 mL

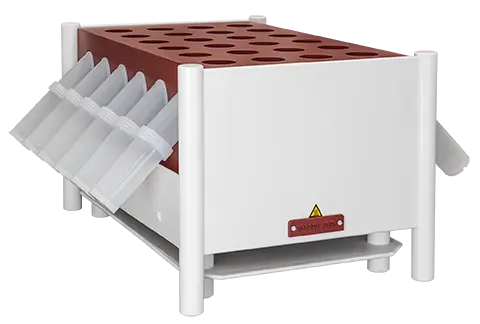

Evapoclean 12 x 125 mL

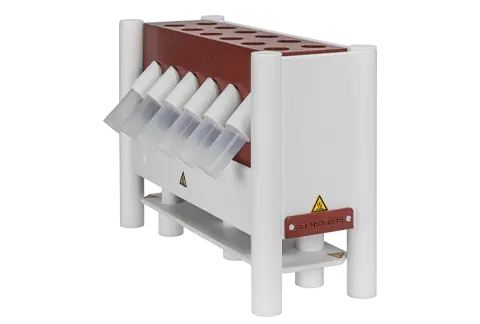

Shown: EV-6.25-1V-15A EvapoClean
EvapoClean
EvapoClean systems support either 125 or 25 mL sample vessels, and three models (3, 6, & 12 samples) are available for each vessel size. Systems include complete vessel kits with standard elbows, and are configured with CleanClever wells on the top surface of the thermal block, which can be used for sample digestion or vessel cleaning.
| EvapoClean Model | 3x25 mL | 6x25 mL | 12x25 mL | 3x125 mL | 6x125 mL | 12x125 mL |
|---|---|---|---|---|---|---|
| 110-120V / Amps | EV-3.25-1V-15A | EV-6.25-1V-15A | EV-12.25-1V-15A | EV-3.125-1V-15A | - | - |
| 208-240V / Amps | EV-3.25-2V-15A | EV-6.25-2V-15A | EV-12.25-2V-15A | EV-3.125-2V-15A | EV-6.125-2V-20A | EV-12.125-2V-20A |
|
Dimensions (L x W x H, in cm) |
28 x 16 x 31 | 44 x 16 x 31 | 44 x 26 x 31 | 36 x 24 x 35 | 64 x 24 x 35 | 64 x 41 x 35 |
| Weight (kg) | 12 | 18 | 33 | 19 | 54 | 111 |
|
CleanClever Wells (diameter x depth, cm) |
6 @ 3 x 5 | 12 @ 3 x 5 | 24 @ 3 x 5 |
3 @ 5 x 4.5 3 @ 5 x 10.4 |
6 @ 5 x 4.5 6 @ 5 x 10.4 |
24 @ 5 x 4.5 |
Shown: VK-500mL-WV
CleanAcids/EvapoClean Accessories
CleanAcids & EvapoClean Vessel Kits consist of two PFA bottles (Source and Product) and a PTFE Elbow. Systems include complete vented vessel kits. Additional vessel kits can be added to easily and quickly purify additional reagents. To support use of a remote temperature probe, vessel kits equipped with dual port elbows are available. The external probe is a crucial element to reach the optimal purification of your reagents. Stands for the vessel kits are available to store them when not in use.
CleanAcids/EvapoClean Accessories
| Part Number | Description | Contents |
|---|---|---|
| VK-125mL-WV | PFA Vessel Kit, 125 mL, with Vent | 2 x 125 mL PFA bottles & closures + PTFE elbow, vent, filter |
| VK-500mL-WV | PFA Vessel Kit, 500 mL, with Vent | 2 x 500 mL PFA bottles & closures + PTFE elbow, vent, filter |
| VK-1000mL-WV | PFA Vessel Kit, 1000 mL, with Vent | 1 jar + 1 bottle with closure in PFA + PTFE elbow, vent, filter |
| EP-125mL-WV | Dual Port Elbow & Probe Kit, for 125 mL | PFA dual port elbow, vent, filter, & temperature probe for 125 mL |
| EP-500mL-WV | Dual Port Elbow & Probe Kit, for 500 mL | PTFE dual port elbow, vent, filter, & temperature probe for 500 mL |
| EP-1000-WV | Dual Port Elbow & Probe Kit, for 1000 mL | PTFE dual port elbow, vent, filter, & temperature probe for 1000 mL |
| ES-6.125 | Elbow Stand, six position for 125 mL Vessel Kits | PVC stand for 6 x 125 mL Clean Acids Vessel Kits |
| ES-3.500 | Elbow Stand, three position for 500 mL Vessel Kits | PVC stand for 3 x 500 mL Clean Acids Vessel Kits |
| S-INSITU-150E | Temp Probe for 125 mL Vessels | Remote probe (150 mm), use with Dual Controller & 125 mL CleanAcids vessels |
| S-INSITU-270E | Temp Probe for 500 mL Vessels | Remote probe (270 mm), use with Dual Controller & 500 mL CleanAcids vessels |
| S-INSITU-450E | Temp Probe for 1000 mL Vessels | Remote probe (450 mm), use with Dual Controller & 1000 mL CleanAcids vessels |
Related Products
Temperature Regulators
All modules require an external temperature regulator/ controller. Designed for remote location outside the corrosive atmosphere in the fume hood. They are available in 110V and 208-240V versions depending on the power circuits available in your laboratory with either a basic timer/single setpoint or multiple temperature program capability.
Single Controller Regulator Specifications
| Model | Timer | Programmable | Electrical Requirement | NEMA Plug |
|---|---|---|---|---|
| RNP-1V-15A-T | YES | 110V/15A | 5-15P | |
| RNP-1V-20A-T | YES | 110V/20A | 5-20P | |
| RNP-2V-15A-T | YES | 208-240V/15A | 6-15P | |
| RNP-2V-20A-T | YES | 208-240V/20A | 6-20P | |
| RP-1V-15A | YES | 110V/15A | 5-15P | |
| RP-1V-20A | YES | 110V/20A | 5-20P | |
| RP-2V-15A | YES | 208-240V/15A | 6-15P | |
| RP-2V-20A | YES | 208-240V/20A | 6-20P |
Dual Controller Regulator Specifications
| Model | Timer | Programmable | Electrical Requirement | NEMA Plug |
|---|---|---|---|---|
| RNP-DUAL-1V-15A | YES | 110V/15A | 5-15P | |
| RNP-DUAL-2V-20A | YES | 208-240V/20A | 6-20P | |
| RP-DUAL-1V-15A | YES | 110V/15A | 5-15P | |
| RP-DUAL-2V-20A | YES | 208-240V/20A | 6-20P |
